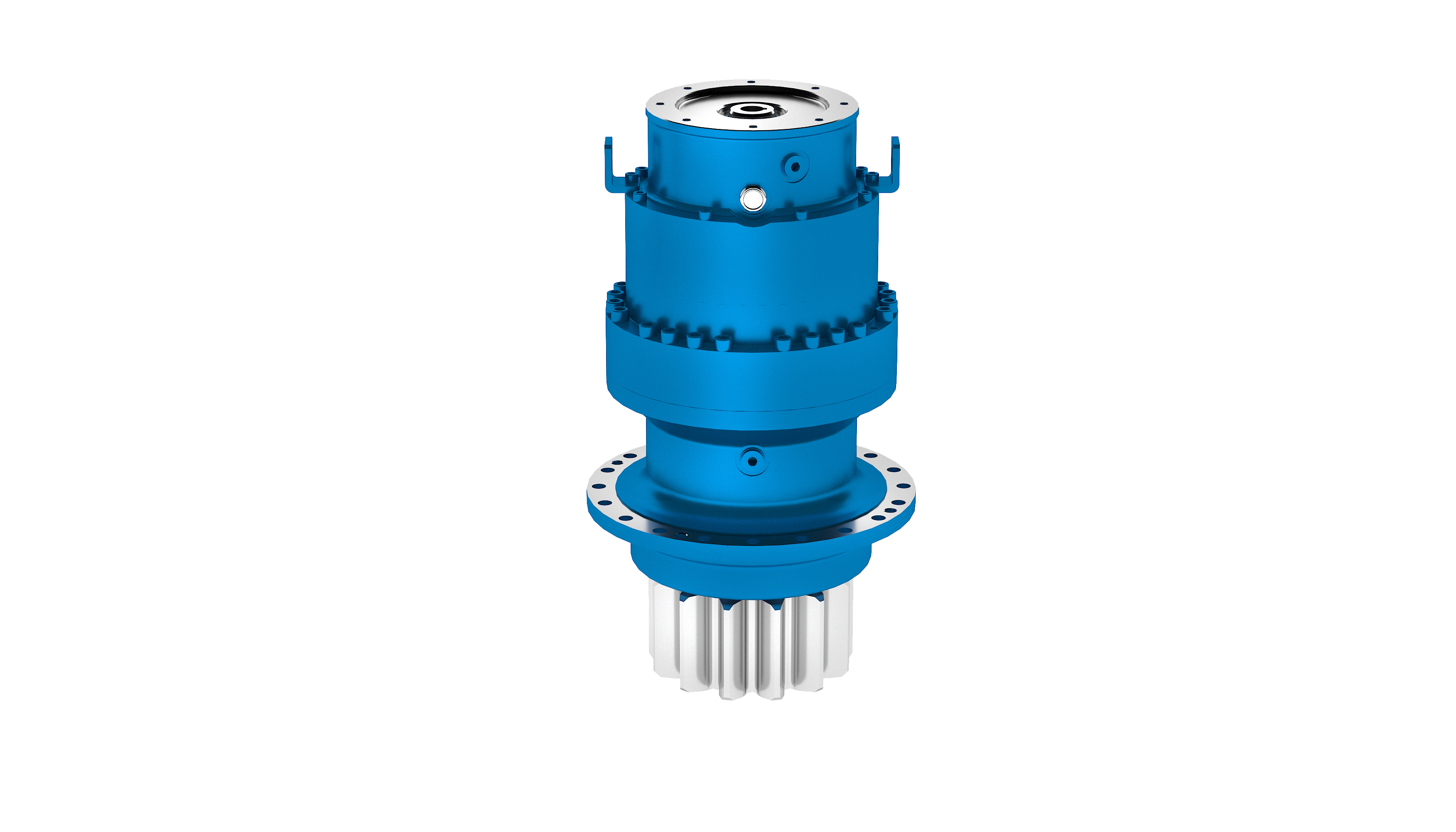

Yaw and Pitch Gearbox
Adopt a brand-new, sustainable, standardized, and modular planetary gearbox platform—featuring high torque density, enhanced reliability and cost-effectiveness, shorter lead times, and timely aftermarket maintenance services.
Subcategory:
Electrical Power
keyword
Yaw and Pitch Gearbox
Product details
We are committed to providing specialized yaw and pitch drive gearbox solutions for the wind energy industry.
And by working closely with customers, we can develop customized products.
We will provide customers with reliable, high-performance products and develop innovative solutions for renewable energy, adhering to globally recognized standards.
Product Advantages
• Brand-new, sustainable, standardized & modular planetary gearbox platform product
• High torque & power density
• High reliability
• Cost-effective
• Shorter lead times
• Timely after-market operation and maintenance services
Main advantages
• Flange-mounted at the input end
• Output connection: external gear or internal/external spline
• Sturdy structure
• High load capacity and bearing-supported output gear shaft
Standard
• The gears are designed according to ISO 6336.
• The transmission shaft is designed according to DIN 743.
• Modular design of the gearbox
• Coaxial or right-angle shaft design
• Various output interface types
• Motor input type (IEC, NEMA motors)
Structural features
• The total transmission ratio requirement is achieved through 3- to 5-stage gear transmissions (each stage can adopt a planetary design).
• Single-stage layout with 3 to 5 planetary gears (which can enhance torque transmission and power density)
• The gear material is alloy steel that has undergone heat treatment (the external gear wheels have been subjected to carburizing and quenching, while the internal gear ring has been tempered and nitrided).
• The housing is made of ductile iron or high-quality steel, ensuring that the gearbox can withstand heavy loads and absorb vibrations during operation, thereby reducing noise.
• The planetary gears are equipped with ball bearings, roller bearings, or full complement roller bearings, which can enhance the gearbox’s transmission efficiency during both startup and operation phases.
